Non Metallic Chemical Process Pumps

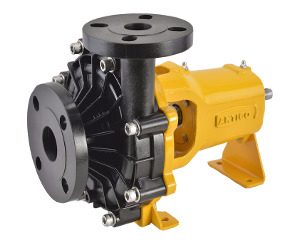

NS Series pumps are injection moulded, horizontal, side discharge, back pull-out, volute casing type, single stage, end suction centrifugal pumps. NS Series pumps are specifically designed to pump general chemicals up to specific gravity of 1.3; best suited for electroplating, filteration, scrubbing, loading and unloading applications. MOC: GFPP | CFRPVDF


Operating Frequency 50 Hz (60 Hz)
Capacity [Q] up to 30 m3 /hr (132 US gpm)
Head [H] up to 30 m (98 ft)
Motor Power [P] up to 3.7 kW (5 hp)
Viscosity up to 80 mPas (80 cP)
Suction Lift 8 m (26 ft) with priming chamber*
Maximum Working Pressure 6 bar (87 psi)
Maximum Specific Gravity [SG] 1.3
Minimum Continuous Flow [MCF] 2 m /hr (9 US gpm)
Maximum Temperature PP : 82°C (180°F), GFRPP: 90°C (194°F), CFRPVDF: 110°C (230°F)
Suction & Delivery Connection ANSI B16.5 - Class 150, DIN 2501, BS4504 - PN16, BSP or NPT*
Shaft Seal Single Mechanical Seals & Gland Packing
Bearings Rolling Element Bearings
Lubrication Grease
Motor Compatibility IS 1231, IEC 72-1, NEMA*

*Available On Request
